thermal oil boiler
Efficiency ≥70
Manual‑fired thermal oil boiler
Manual‑fired thermal oil heater
Hand‑fired coal‑fired thermal oil heater is a manual coal‑feeding heating equipment taking coal as fuel and thermal oil as heat carrier. It adopts hand‑fired fixed grate structure, realizes high‑temperature liquid‑phase circulating heat supply, and achieves high‑temperature heating under low pressure. Featuring low equipment investment and simple operation & maintenance, it is suitable for small‑and‑medium‑scale industrial heating working conditions.
Fuel Type
Wood; straw stalk; biomass; coal; wood bark; rice straw; rice husk
Rated Capacity
70-3000KW（0.06-2.5Mkcal）
Working Pressure
0.8-1.6Mpa
Thermal Efficiency
≥70
Key Features
- Hand‑fired fixed grate, manual coal feeding and slag removal, simple equipment structure and low initial investment cost
- Thermal oil liquid‑phase circulation, capable of delivering high‑temperature heat up to 280 °C under low pressure with stable heat exchange
- Complete safety protection: interlock alarms for over‑temperature, over‑pressure and liquid level, safe and reliable operation
- Convenient disassembly and assembly of the complete unit, suitable for sites with limited workshop conditions, low operation and maintenance threshold
- Compatible with various grades of coal, easy fuel procurement and controllable operating costs.

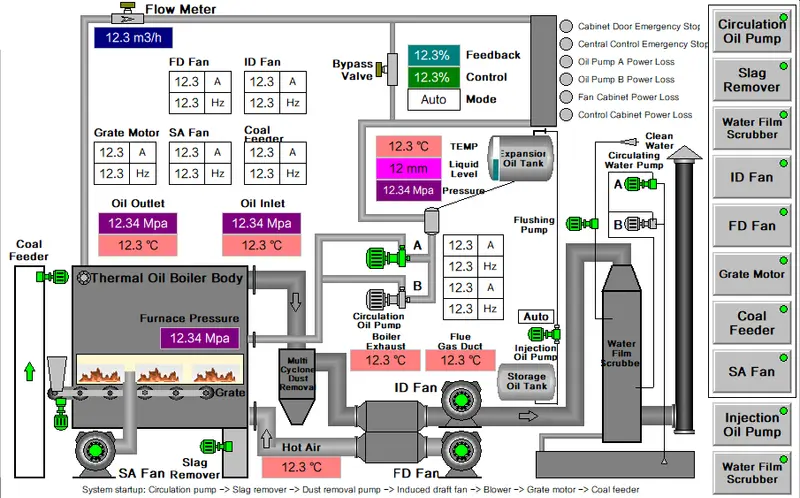

System Composition
- 1Boiler body
- 2 Hand‑fired fixed grate
- 3 Combustion furnace
- 4 Thermal oil circulation oil pump
- 5 Expansion tank
- 6 Oil storage tank
- 7 Oil‑gas separator
- 8 Instrument control system
- 9 Dust‑removal auxiliary equipment
Application Industries
- 1Asphalt heating
- 2 rubber products
- 3 wood processing
- 4 food drying
- 5 chemical reaction kettle
- 6 composite materials
- 7 textile printing and dyeing
- 8 building materials production, etc
