Gas‑fired & Oil‑fired Thermal Oil Heater
Gas‑fired & Oil‑fired Thermal Oil Heater
It is a closed‑cycle heating equipment fueled by fuel oil (diesel, heavy oil) or gas (natural gas, liquefied petroleum gas), with thermal oil as the heat‑transfer medium. The circulating pump forces liquid‑phase circulation of thermal oil, which transfers heat to heat‑consuming equipment and then returns for reheating, realizing low‑temperature high‑pressure, high‑efficiency and stable heat supply.
Fuel Type
GAS/OIL
Rated Capacity
100-28000KW（0.08-24Mkcal）
Working Pressure
0.8-1.6Mpa
Thermal Efficiency
≥92%
Key Features
- Operating temperature up to 320°C, with corresponding system pressure of only 0.3‑0.5 MPa, safe and reliable. High thermal efficiency (≥92%), no heat loss in closed‑cycle operation, low operating cost. Full‑automatic combustion control, PLC/PID constant‑temperature regulation, easy operation and maintenance. Equipped with multiple safety protections: over‑temperature, over‑pressure and low‑liquid‑level protection
System Composition

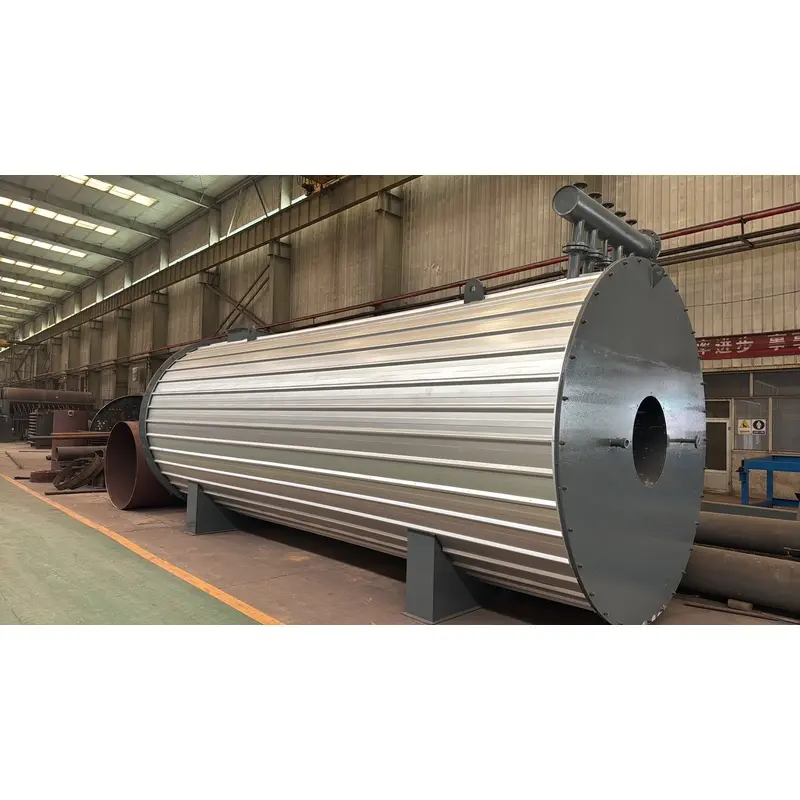

- 1Furnace body: Horizontal / vertical helical coil heat‑absorbing main body, three‑pass flue gas structure
- 2 Combustion system: Gas pressure regulating valve group, full‑automatic burner (single‑stage fire / two‑stage fire / electronic proportional adjustment)
- 3 Hot‑oil circulation system: High‑temperature circulating oil pump, expansion tank, oil storage tank, pipeline valves, filter

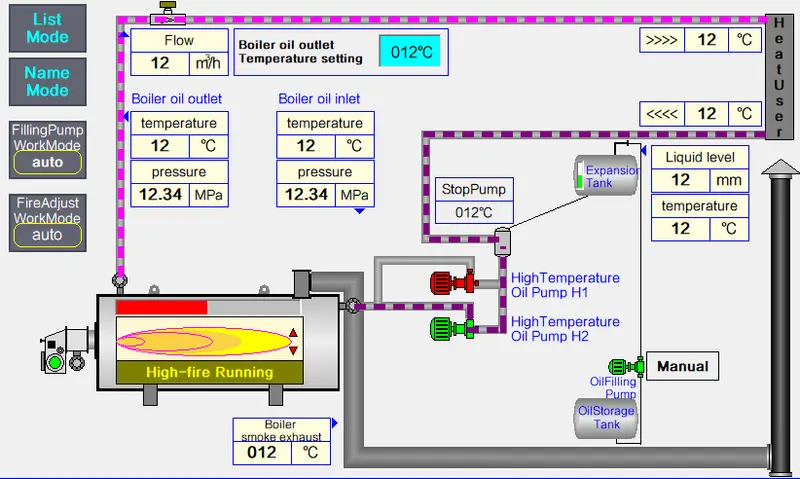

- 4 Control system: PLC touch‑screen control cabinet, automatic ignition, load adjustment, temperature interlock
- 5 Safety protection devices: Over‑temperature, over‑pressure, low‑flow interlock, flame‑out protection, smoke exhaust explosion‑proof door, etc.
Application Industries
- 1Industrial scenarios requiring medium‑and‑high‑temperature heat sources
- 2such as chemical reaction kettles
- 3asphalt heating
- 4wood hot‑pressing
- 5food drying
- 6 textile setting
- 7rubber‑plastic vulcanization
- 8electroplating tank heating etc.
