thermal oil boiler
Efficiency ≥86%
1 / 5
Coal‑fired (biomass‑fired) thermal oil heater
Coal‑fired (biomass‑fired) thermal oil heater
It is a closed‑cycle heating equipment fueled by wood; straw; biomass; coal; wood bark; rice straw; rice husk, with thermal oil as heat carrier. The circulating pump forces liquid‑phase circulation of thermal oil, which transfers heat to heat‑consuming equipment and then returns for reheating, realizing low‑temperature high‑pressure, high‑efficiency and stable heat supply.
Fuel Type
Wood/Straw/Biomass/Coal/Wood bark/Rice straw/Rice husk
Rated Capacity
100-28000KW（0.08-24Mkcal）
Working Pressure
0.8-1.6Mpa
Thermal Efficiency
≥86%
Key Features
- Operating temperature up to 320°C, with corresponding system pressure of only 0.3‑0.5 MPa, safe and reliable. High thermal efficiency (≥92%), no heat loss in closed‑cycle operation, low operating cost. Full‑automatic combustion control, PLC/PID constant‑temperature regulation, easy operation and maintenance. Equipped with multiple safety protections: over‑temperature, over‑pressure and low‑liquid‑level protection

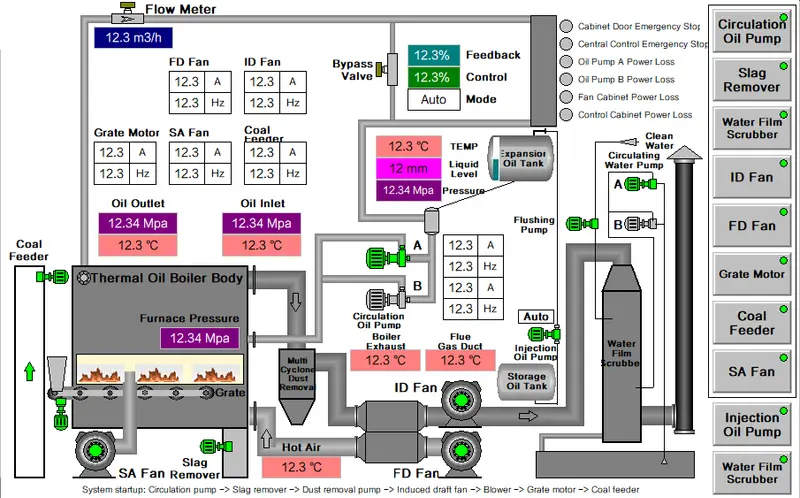

System Composition

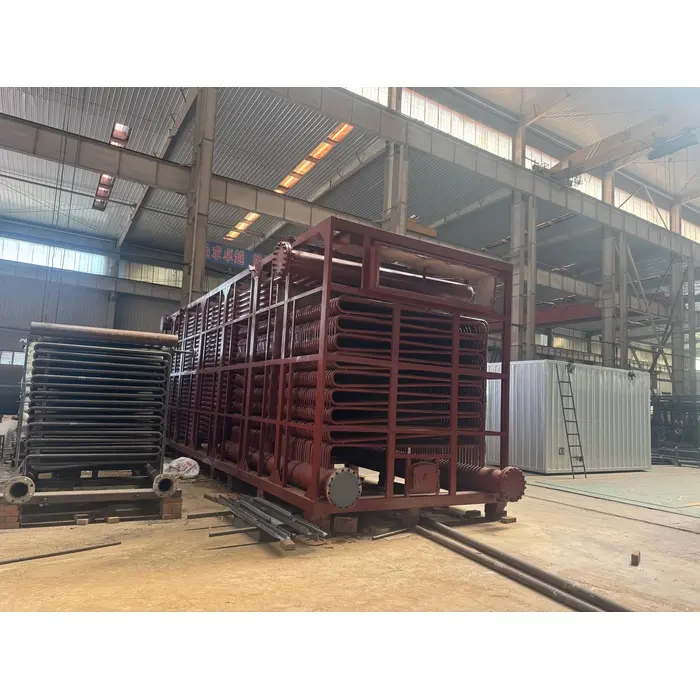

- 1Furnace Body: Horizontal / vertical spiral coil heat‑receiving main body, three‑pass flue gas structure
- 2 Combustion System: Chain grate / reciprocating grate with full‑automatic control
- 3 Thermal Oil Circulation System: High‑temperature circulating oil pump, expansion tank, oil storage tank, pipeline valves, filter
- 4 Control System: PLC touch‑screen control cabinet, automatic ignition, load adjustment, temperature interlock
- 5 Safety Protection Devices: Over‑temperature, over‑pressure, low‑flow interlock, flame‑out protection, smoke exhaust explosion‑proof door, etc.
Application Industries
- 1chemical reaction kettles
- 2 asphalt heating
- 3 wood hot‑pressing
- 4 food drying
- 5 textile setting
- 6 rubber‑plastic vulcanization
- 7 electroplating tank heating, etc.
