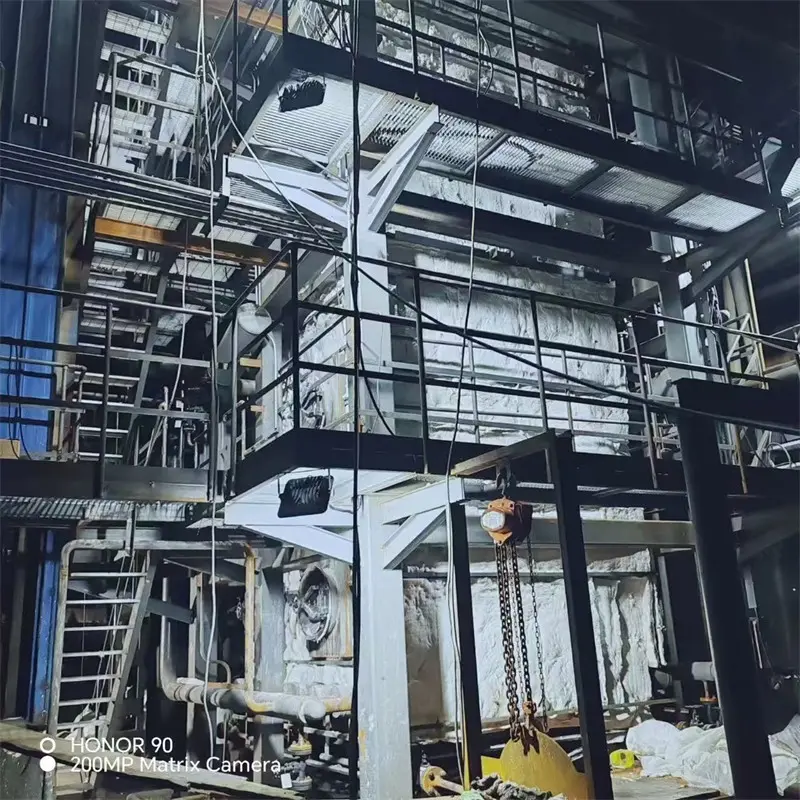

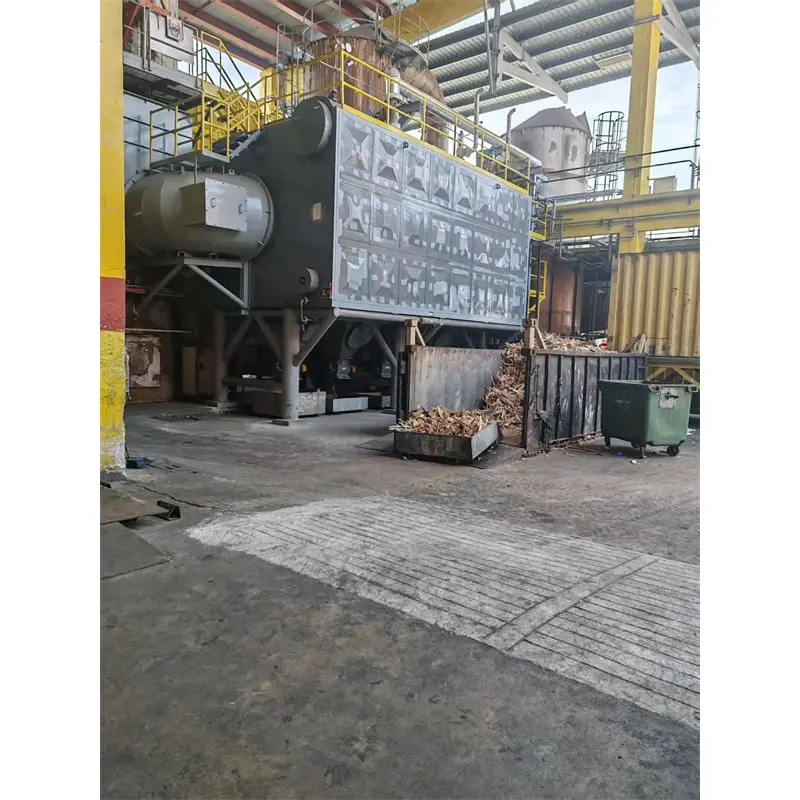

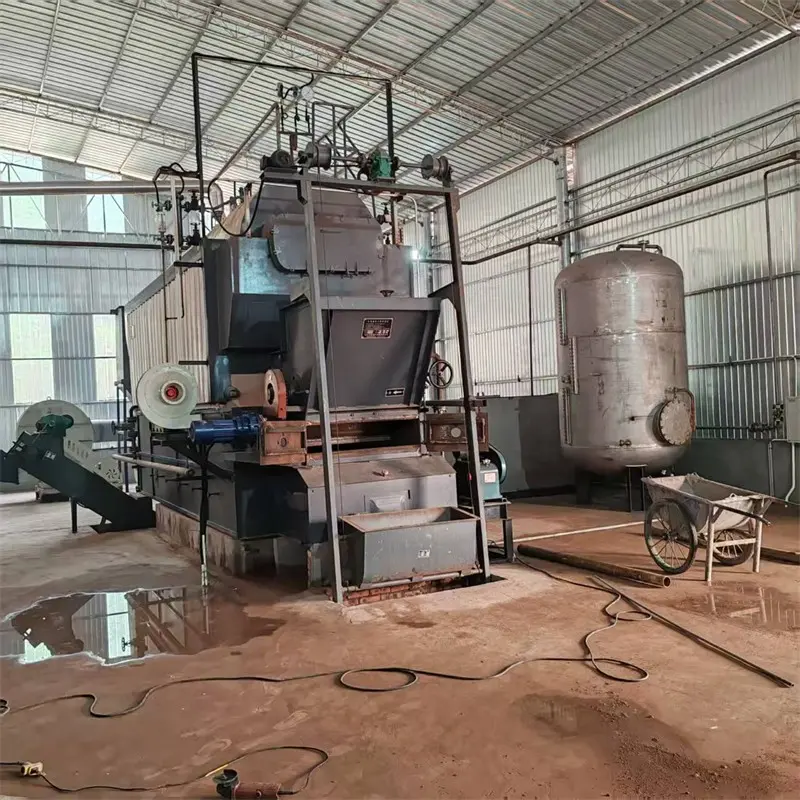

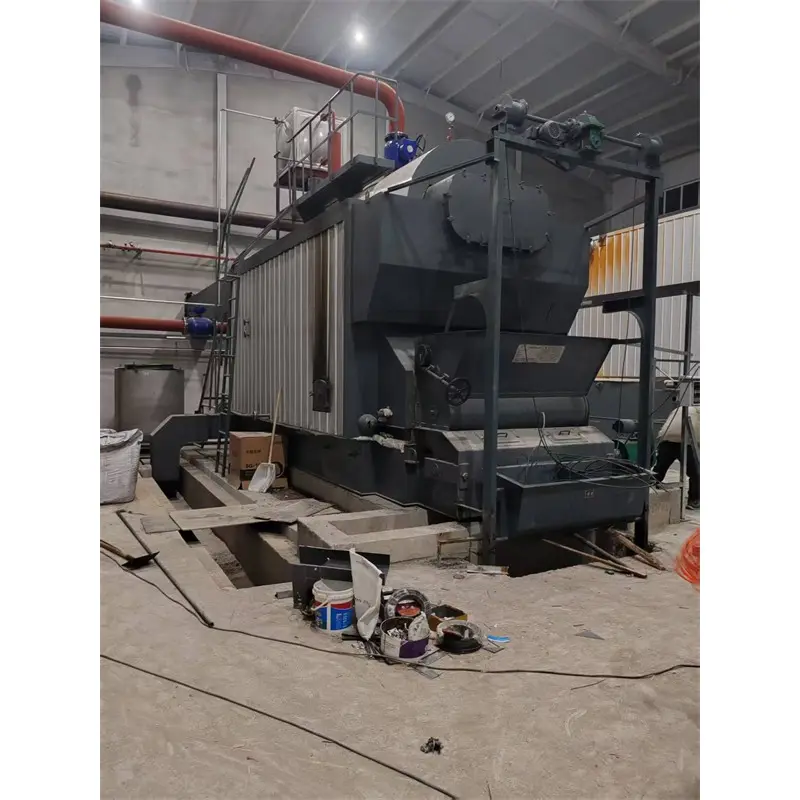

Coal-fired (Biomass-fired) Steam Boiler
Coal-fired (Biomass-fired) Steam Boiler
This series of coal (biomass) fired steam boiler is horizontal chain grate industrial boiler. It has wide fuel adaptability, can burn coal, biomass pellets, straw, wood chips and other solid fuels. Adopting three-pass water-fire tube structure, it features high thermal efficiency and stable steam output. Equipped with multiple safety protection devices and high automation level, easy for operation and maintenance. It supplies process steam for various industries, available with CE, PED certificates, customized evaporation capacity and pressure.
Fuel Type
Suitable fuels: wood, straw, biomass, coal, wood bark, rice straw, rice husk
Rated Capacity
1-40T
Working Pressure
0-3.82Mpa
Thermal Efficiency
≥80%
Key Features
- Wide fuel adaptability for coal and biomass
- high thermal efficiency and low fuel consumption
- fully automatic operation
- multiple safety interlock protections
- stable steam pressure
- optional energy saver to reduce flue gas temperature
- compact structure and easy installation
- customized design available
System Composition
- 1Boiler main body
- 2 chain grate combustion system
- 3 water feeding system
- 4 forced & induced draft system
- 5 dust removal & desulfurization & denitrification system
- 6 instrument monitoring system
- 7 automatic electric control system
- 8 economizer (optional)
Application Industries
- 1Food processing
- 2 textile printing & dyeing
- 3 chemical & pharmaceutical
- 4 building materials curing
- 5 paper making
- 6 rubber vulcanization
- 7 grain & oil processing
- 8 wood processing
- 9 feed production
