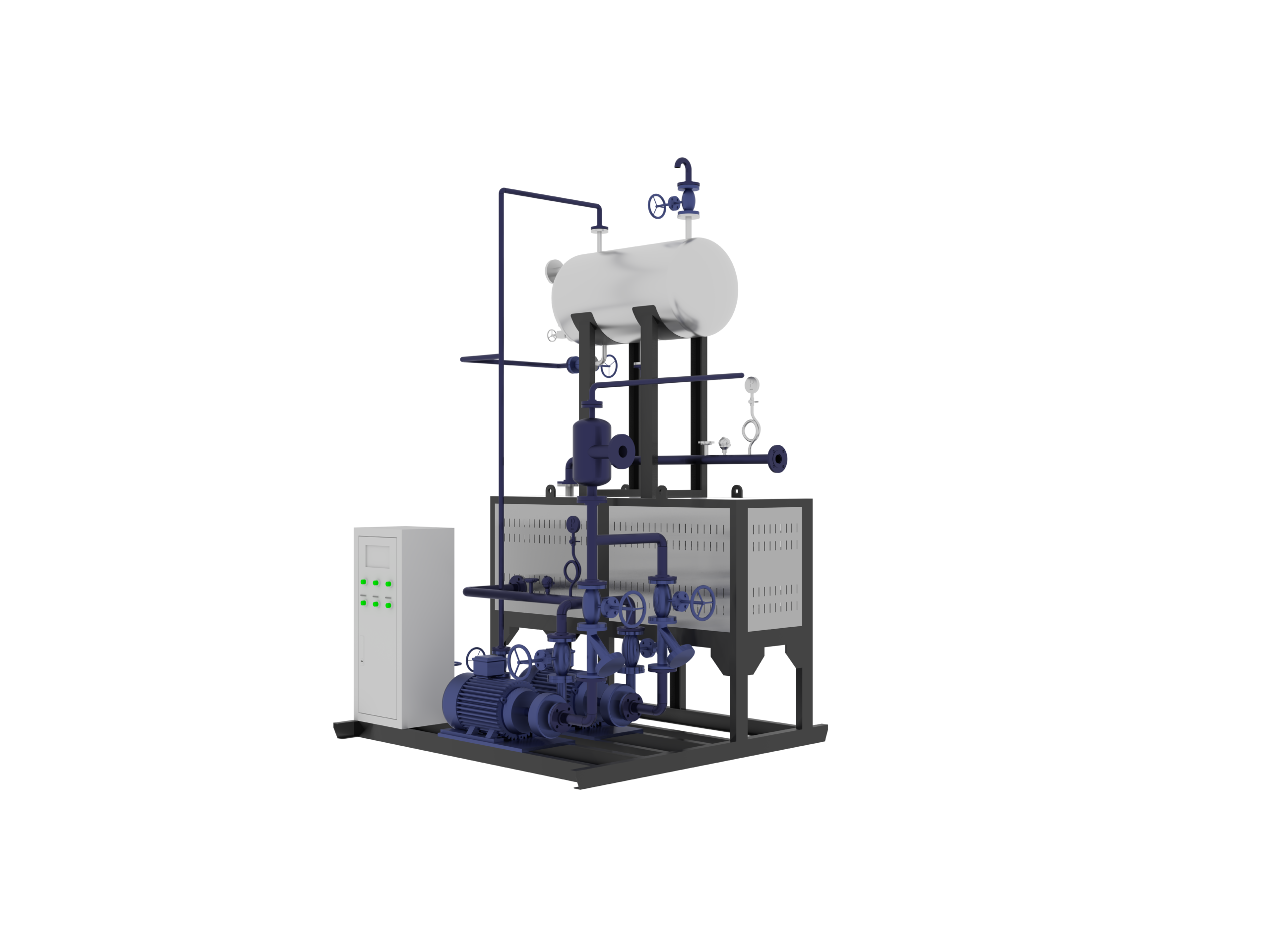

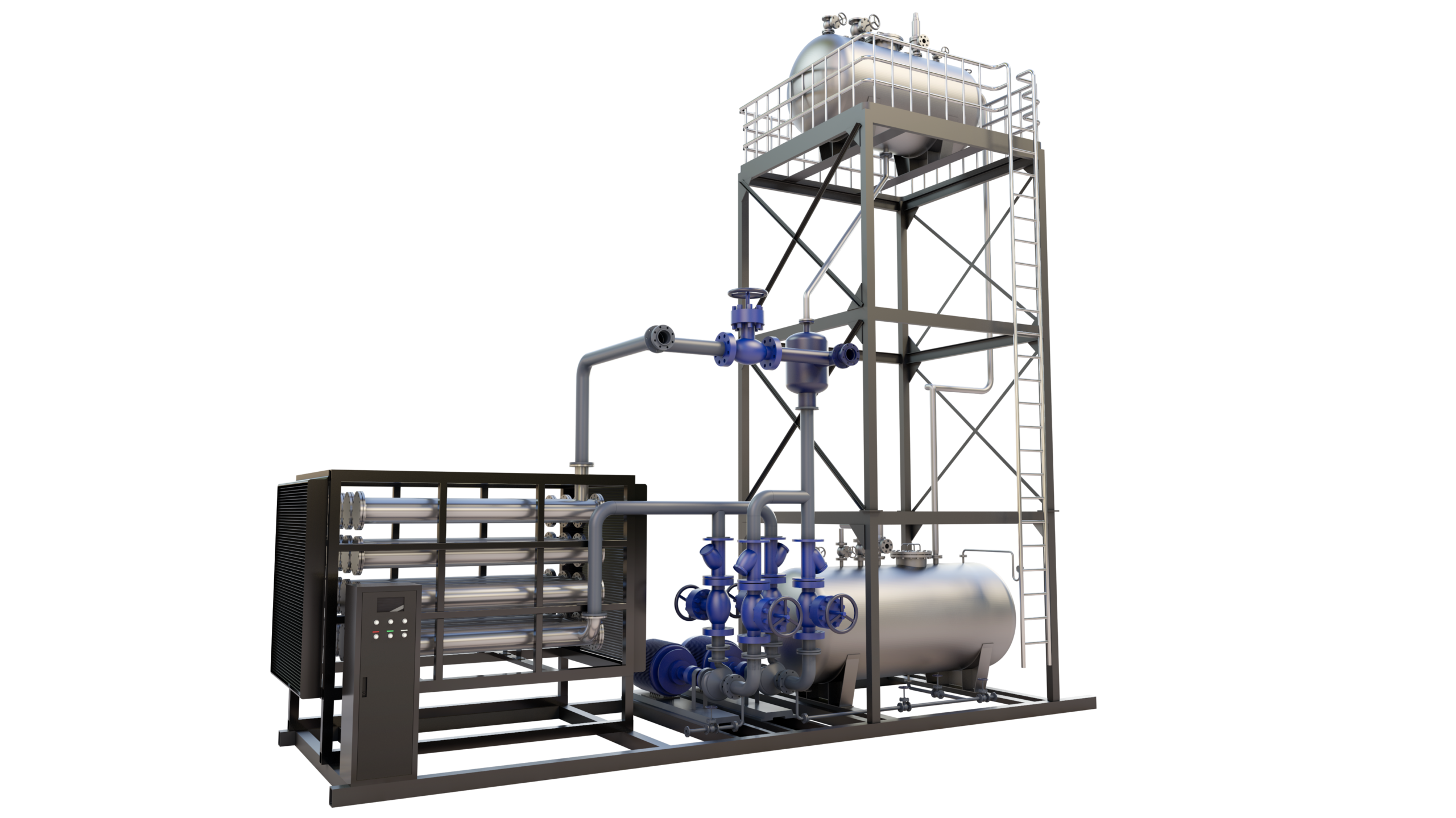

Electric Heating Thermal Oil Heater

OverView

Power: 10– 6000 kW
Working Pressure: 0.8 – 1 MPa
Working Temperature: 320°C
Applicable Fuels: electric
Application Industries: Petroleum, chemical industry, chemical fiber, pharmaceuticals, textile printing and dyeing, building materials, wood processing, vegetable oil processing, and other industries.

Product Introduction

Equipped with operation control and safety monitoring devices, featuring fully automatic temperature rise control, easy operation and convenient installation. Achieves high working temperature (≤340℃) under low operating pressure (<0.5MPa). When the oil temperature reaches 300℃, the operating pressure is only 1/70 of the saturated steam pressure of water, with thermal efficiency exceeding 95%. Delivers stable heating and precise temperature regulation, with temperature control accuracy up to ±1℃. Eliminates heat loss caused by leakage, dripping and seepage common in steam boilers, achieving 95% heat utilization rate and about 50% energy saving. Compact in size and flexible in installation, suitable for installation near heat-consuming equipment without foundation construction or on-duty personnel. Durable service life: With standard operation procedures, the service life can reach more than 10 years. The heat transfer medium of the heating system is organic heat carrier – thermal oil, which is odorless, non-toxic, pollution-free and non-corrosive to equipment. With long service life, it is a high-efficiency and energy-saving heating equipment of "low pressure and high temperature" type. Customizable: The shape can be designed according to customer requirements, with single-unit power ranging from 10KW to 6000KW available.

Product Advantages

Expertise Team

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

High-Quality Products

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

Cost Savings

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

Trustworthy

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

Model parameters

Product Parameter Table
Product Name				Fuel (Gas) Heat Transfer Oil Boiler – Horizontal Fuel (Gas) Heat Transfer Oil Boiler – Horizontal Fuel (Gas) Heat Transfer Oil Boiler – Horizontal																			Product Name
Product Model				YY(Q)W- 120KW	YY(Q)W- 240KW	YY(Q)W- 350KW	YY(Q)W- 500KW	YY(Q)W- 700KW	YY(Q)W- 930KW	YY(Q)W- 1200KW	YY(Q)W- 1400KW	YY(Q)W- 2000KW	YY(Q)W- 2400KW	YY(Q)W- 3000KW	YY(Q)W- 3500KW	YY(Q)W- 4100KW	YY(Q)W- 4700KW	YY(Q)W- 6000KW	YY(Q)W- 7000KW	YY(Q)W- 8200KW	YY(Q)W- 9300KW	YY(Q)W- 12000KW	Product Model
Rated Power			KW	120KW	240KW	350KW	500KW	700KW	930KW	1200KW	1400KW	2000KW	2400KW	3000KW	3500KW	4100KW	4700KW	6000KW	7000KW	8200KW	9300KW	12000KW	KW	Rated Power
Equivalent Heat Output			kcal/h	10×104	20×104	30×104	40×104	60×104	80×104	100×104	1200000	1600000	2000000	2500000	3000000	3500000	4000000	5000000	6000000	7000000	8000000	10000000	kcal/h	Equivalent Heat Output
Working Pressure			MPa	0.8																			MPa	Working Pressure
Design Pressure			MPa	1																			MPa	Design Pressure
Oil Inlet Temperature			℃	284	278	281	273	281	281	280	277	279	276	273	272	273	269	272	271	262	270	267	℃	Oil Inlet Temperature
Oil Outlet Temperature			℃	300																			℃	Oil Outlet Temperature
Boiler Flow Rate			m³/h	12.5	18	30	30	60	80	100	100	160	160	180	200	250	250	350	400	350	500	600	m³/h	Boiler Flow Rate
Designed Thermal Efficiency		Oil (Gas)	%	96.1 （98.05）	96.09 （98.04）	96.28 （98.23）	96.27 （98.2）	96.02 （98.53）	96 （98.52）	96.06 （98.16）	96.03 （98.53）	96.07 （98.55）	96.06 （98.5）	96 （98.02）	96.1（98.03）	96.01 （98.06）	96.2 （98.07）	96.18 （98.04）	96.17 （98.08）	92.98 （92.15）	96.06 （98.39）	96.11 （98.05）	%	Oil (Gas)	Designed Thermal Efficiency
Boiler Net Weight			t	1.548	1.637	3.129	3.146	3.771	4.496	4.992	5.68	7.7	8.821	10.3	16.7	17.5	20.7	29.7	32.7	34.6	36.9	50.1	t	Boiler Net Weight
Boiler Oil Capacity			m³	0.11	0.12	0.23	0.38	0.52	0.57	0.74	1	1.55	1.77	1.92	3.78	4.61	5.7	7.4	8.35	9.5	10.2	13.3	m³	Boiler Oil Capacity
Combustion Mode			/	Slight Positive Pressure Operation																			/	Combustion Mode
Combustion Regulation Mode			/	Fully Automatic Two-stage Fire Regulation									Fully Automatic Proportional Regulation										/	Combustion Regulation Mode
Applicable Fuel			/	Light Oil (Natural Gas)																			/	Applicable Fuel
Fuel Consumption	Natural Gas		Nm³/h	14.5	29	42	61	87	115.5	147	170	244	294	344	406	477	539	689	848.7	954	1050	1389	Nm³/h	Natural Gas		Fuel Consumption
Fuel Consumption	Light Oil		㎏/h	12	24	34	50	71	95	121	139	200	241	285	335.5	397	443	566	712	788	863	1148	㎏/h	Light Oil		Fuel Consumption
Power Supply			/	380V/50HZ																			/	Power Supply
Charging Oil Pump Power			KW	1.5																			KW	Charging Oil Pump Power
Circulating Oil Pump Power			KW	3	5.5	7.5	7.5	15	15	22	22	37	45	45	55	75	75	110	110	110	90	90	KW	Circulating Oil Pump Power
Maximum transport size		L	mm	2100	2500	2700	3200	3700	3700	4300	5400	5600	5500	6100	6600	7400	7700	8900	9400	10450	11000	13400	mm	L	Maximum transport size
		W		1300	1350	1700	1700	1700	1850	1850	1850	2100	2300	2300	2650	2850	3250	3450	3400	3600	3650	3750		W
		H		1600	1600	2000	2100	1900	2500	2500	2500	2500	2500	2700	3150	2950	3400	3600	3600	3700	3750	3850		H
External Interface	Oil Inlet	MPa	PN	2.5																			MPa	PN	Oil Inlet	External Interface
	Oil Inlet	mm	DN	DN50		DN65		DN100		DN150					DN200		DN250			DN300			mm	DN	Oil Inlet
	Oil Outlet	MPa	PN	2.5																			MPa	PN	Oil Outlet
	Oil Outlet	mm	DN	DN50		DN65		DN100		DN150					DN200		DN250			DN300			mm	DN	Oil Outlet
Product Model				YY(Q)W- 120KW	YY(Q)W- 240KW	YY(Q)W- 350KW	YY(Q)W- 500KW	YY(Q)W- 700KW	YY(Q)W- 930KW	YY(Q)W- 1200KW	YY(Q)W- 1400KW	YY(Q)W- 2000KW	YY(Q)W- 2400KW	YY(Q)W- 3000KW	YY(Q)W- 3500KW	YY(Q)W- 4100KW	YY(Q)W- 4700KW	YY(Q)W- 6000KW	YY(Q)W- 7000KW	YY(Q)W- 8200KW	YY(Q)W- 9300KW	YY(Q)W- 12000KW	Product Model

Product Name				Fuel (Gas) Heat Transfer Oil Boiler – Vertical Fuel (Gas) Heat Transfer Oil Boiler – Vertical Fuel (Gas) Heat Transfer Oil Boiler – Vertical																			Product Name
Product Model				YY(Q)L- 120KW	YY(Q)L- 240KW	YY(Q)L- 350KW	YY(Q)L- 500KW	YY(Q)L- 700KW	YY(Q)L- 930KW	YY(Q)L- 1200KW	YY(Q)L- 1400KW	YY(Q)L- 2000KW	YY(Q)L- 2400KW	YY(Q)L- 3000KW	YY(Q)L- 3500KW	YY(Q)L- 4100KW	YY(Q)L- 4700KW	YY(Q)L- 6000KW	YY(Q)L- 7000KW	YY(Q)L- 8200KW	YY(Q)L- 9300KW	YY(Q)L- 12000KW	Product Model
Rated Power			KW	120KW	240KW	350KW	500KW	700KW	930KW	1200KW	1400KW	2000KW	2400KW	3000KW	3500KW	4100KW	4700KW	6000KW	7000KW	8200KW	9300KW	12000KW	KW	Rated Power
Equivalent Heat Output			kcal/h	10×104	20×104	30×104	40×104	60×104	80×104	100×104	120×104	160×104	200×104	250×104	300×104	350×104	400×104	500×104	600×104	700×104	800×104	1000×104	kcal/h	Equivalent Heat Output
Working Pressure			MPa	0.8																			MPa	Working Pressure
Design Pressure			MPa	1																			MPa	Design Pressure
Oil Inlet Temperature			℃	284	278	281	273	281	281	280	277	279	276	273	272	273	269	272	271	262	270	267	℃	Oil Inlet Temperature
Oil Outlet Temperature			℃	300																			℃	Oil Outlet Temperature
Boiler Flow Rate			m³/h	12.5	18	30	30	60	80	100	100	160	160	180	200	250	250	350	400	350	500	600	m³/h	Boiler Flow Rate
Designed Thermal Efficiency		Oil (Gas)	%	96.1 （98.05）	96.09 （98.04）	96.28 （98.23）	96.27 （98.2）	96.02 （98.53）	96 （98.52）	96.06 （98.16）	96.03 （98.53）	96.07 （98.55）	96.06 （98.5）	96 （98.02）	96.1（98.03）	96.01 （98.06）	96.2 （98.07）	96.18 （98.04）	96.17 （98.08）	92.98 （92.15）	96.06 （98.39）	96.11 （98.05）	%	Oil (Gas)	Designed Thermal Efficiency
Boiler Net Weight			t	1.548	1.637	3.129	3.146	3.771	4.496	4.992	5.68	7.7	8.821	10.3	16.7	17.5	20.7	29.7	32.7	34.6	36.9	50.1	t	Boiler Net Weight
Boiler Oil Capacity			m³	0.11	0.12	0.23	0.38	0.52	0.57	0.74	1	1.55	1.77	1.92	3.78	4.61	5.7	7.4	8.35	9.5	10.2	13.3	m³	Boiler Oil Capacity
Combustion Mode			/	Slight Positive Pressure Operation																			/	Combustion Mode
Combustion Regulation Mode			/	Fully Automatic Two-stage Fire Regulation									Fully Automatic Proportional Regulation										/	Combustion Regulation Mode
Applicable Fuel			/	Light Oil (Natural Gas)																			/	Applicable Fuel
Fuel Consumption	Natural Gas		Nm³/h	14.5	29	42	61	87	115.5	147	170	244	294	344	406	477	539	689	848.7	954	1050	1389	Nm³/h	Natural Gas		Fuel Consumption
Fuel Consumption	Light Oil		㎏/h	12	24	34	50	71	95	121	139	200	241	285	335.5	397	443	566	712	788	863	1148	㎏/h	Light Oil		Fuel Consumption
Power Supply			/	380V/50HZ																			/	Power Supply
Charging Oil Pump Power			KW	1.5																			KW	Charging Oil Pump Power
Circulating Oil Pump Power			KW	3	5.5	7.5	7.5	15	15	22	22	37	45	45	55	75	75	110	110	110	90	90	KW	Circulating Oil Pump Power
Maximum transport size		L	mm	2100	2500	2700	3200	3700	3700	4300	5400	5600	5500	6100	6600	7400	7700	8900	9400	10450	11000	13400	mm	L	Maximum transport size
		W		1300	1350	1700	1700	1700	1850	1850	1850	2100	2300	2300	2650	2850	3250	3450	3400	3600	3650	3750		W
		H		1600	1600	2000	2100	1900	2500	2500	2500	2500	2500	2700	3150	2950	3400	3600	3600	3700	3750	3850		H
External Interface	Oil Inlet	MPa	PN	2.5																			MPa	PN	Oil Inlet	External Interface
	Oil Inlet	mm	DN	DN50		DN65		DN100		DN150					DN200		DN250			DN300			mm	DN	Oil Inlet
	Oil Outlet	MPa	PN	2.5																			MPa	PN	Oil Outlet
	Oil Outlet	mm	DN	DN50		DN65		DN100		DN150					DN200		DN250			DN300			mm	DN	Oil Outlet
Product Model				YY(Q)L- 120KW	YY(Q)L- 240KW	YY(Q)L- 350KW	YY(Q)L- 500KW	YY(Q)L- 700KW	YY(Q)L- 930KW	YY(Q)L- 1200KW	YY(Q)L- 1400KW	YY(Q)L- 2000KW	YY(Q)L- 2400KW	YY(Q)L- 3000KW	YY(Q)L- 3500KW	YY(Q)L- 4100KW	YY(Q)L- 4700KW	YY(Q)L- 6000KW	YY(Q)L- 7000KW	YY(Q)L- 8200KW	YY(Q)L- 9300KW	YY(Q)L- 12000KW	Product Model

Note 1: The models in this table are conventional models, please contact us for other specifications and models.
Note 2: All the above values are calculated based on the standard of natural gas low heating value 8400kcal/Nm and diesel low heating value 10250kcal/kg.
Note 3: For the need of continuous improvement, our company reserves the right to modify the specifications and parameters. The above parameters are for reference only, please subject to the final drawings.
Note 4: Conventional configuration power supply conditions: 380V 50Hz three-phase five-wire, if there is any difference, please put forward in advance.
Note 5: Model code description: Y-Fuel Oil Q-Gas
