Horizontal Coal/Biomassc-Fired thermal oil boiler

OverView

Power: 700 – 29,200 kW
Working pressure: 0.8 MPa
Working temperature: 320°C
Applicable fuel: Biomass pellets, coal
Application industries: Petroleum, chemical industry, chemical fiber, pharmaceuticals, textile and dyeing, building materials, wood processing, vegetable oil processing, and other related industries

Product Introduction

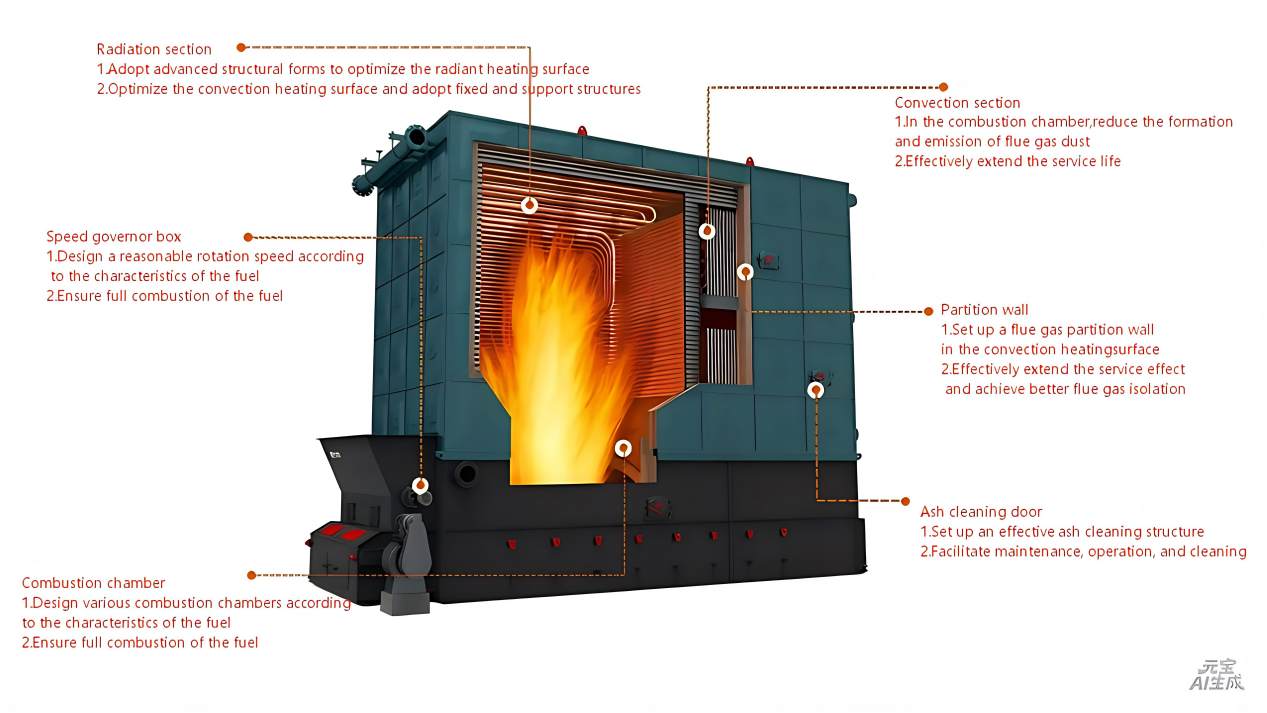

The YLW series thermal oil boiler is a horizontal chain-grate assembled boiler with a square coil. The chain grate and the boiler body are shipped separately. This boiler adopts a chain grate for mechanical feeding, is equipped with a forced draft fan and an induced draft fan for mechanical ventilation, and features a slag extractor for mechanical slag removal. During operation, fuel falls from the feed hopper onto the grate for combustion. High-temperature flue gas is reflected by the rear arch to the front of the furnace and enters the combustion chamber. After heat exchange through the radiant heating surface, it proceeds to the convective heating surface for convective heat transfer, then passes through the waste heat boiler, followed by the air preheater, and finally enters the dust collector. After dust removal, the flue gas is drawn by the induced draft fan and discharged into the atmosphere via the chimney.

Product Advantages

Expertise Team

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

High-Quality Products

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

Cost Savings

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

Trustworthy

Thermal heat combustion power gas turbines steam as coal. Boilers electricity fuel grid plant; engineering efficiency.

Model parameters

Product Parameters
Product Name			Biomass thermal oil boiler – vertical – fixed grate Biomass thermal oil boiler – vertical – fixed grate											Product Name
Product Model			YGL-120SK-A	YGL-120SK	YGL-240SK-A	YGL-350SK-A	YGL-500SK-A	YGL-700SK-A	YGL-700SK	YGL-1000SK-A	YGL-1000SK	YGL-1200SK-A	YGL-1400SK-A	Product Model
Working Pressure		MPa	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	MPa	Working Pressure
Inlet and Outlet Oil Temperature		℃	284/300	284/300	280/300	281/300	279/300	281/300	281/300	280/300	279/300	281/300	277/300	℃	Inlet and Outlet Oil Temperature
Flow Rate		m3/h	12.5	12.5	20	30	40	60	60	80	80	100	100	m3/h	Flow Rate
Header Specification		mm	DN50	DN50	DN50	DN65	DN65	DN100	DN100	DN150	DN150	DN150	DN150	mm	Header Specification
Boiler Outlet Smoke Temperature		℃		358	402	373	350	364	345	332	332	360	320	℃	Boiler Outlet Smoke Temperature
Water Heater	Area	m2		0.5	19	2	7	35	5	12	12	10	13	m2	Area	Water Heater
Water Heater	Smoke Exhaust	℃		276	144	266	211	156	240	220	220	212	194	℃	Smoke Exhaust	Water Heater
Air Preheater	Area	m2												m2	Area	Air Preheater
Air Preheater	Smoke Exhaust	℃												℃	Smoke Exhaust	Air Preheater
Design Thermal Efficiency		%		73.00%	80.26%	74.00%	75.02%	80.10%	77.16%	77.27%	77.27%	75.16%	76.15%	%	Design Thermal Efficiency
Remarks		/		Without Feeder					Without Feeder		Without Feeder			/	Remarks

Product Name			Biomass thermal oil boiler – vertical – fixed grate (Special internal insulation)											Product Name
Product Model			YGL-240SK-C	YGL-350SK-B	YGL-350SK-C	YGL-500SK-C	YGL-700SK-C	YGL-1200SK-B	YGL-1200SK-C	YGL-1400SK-C	YGL-2000SK-B	YGL-2000SK-C		Product Model
Working Pressure		MPa	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8		MPa	Working Pressure
Inlet and Outlet Oil Temperature		℃	276/300	281/300	281/300	280/300	281/300	270/300	281/300	277/300	267/300	280/300		℃	Inlet and Outlet Oil Temperature
Flow Rate		m3/h	16	30	30	40	60	100	100	100	100	160		m3/h	Flow Rate
Header Specification		mm	DN65	DN100	DN65	DN100	DN100	DN100	DN150	DN150	DN150	DN150		mm	Header Specification
Boiler Outlet Smoke Temperature		℃	320	311	367	300	303	286	360	325	306	380		℃	Boiler Outlet Smoke Temperature
Water Heater	Area	m2		3	3		6	13	10	12	29	29		m2	Area	Water Heater
Water Heater	Smoke Exhaust	℃		212	235		235	173	209	192	167	160		℃	Smoke Exhaust	Water Heater
Air Preheater	Area	m2												m2	Area	Air Preheater
Air Preheater	Smoke Exhaust	℃												℃	Smoke Exhaust	Air Preheater
Design Thermal Efficiency		%	71.44%	75.29%	73.78%	73.08%	75.56%	79.36%	74.79%	76.27%	80.05%	78.24%		%	Design Thermal Efficiency
Remarks		/												/	Remarks

Product Name			Biomass thermal oil boiler – vertical – chain grate Biomass thermal oil boiler – vertical – chain grate											Product Name
Product Model			YLL-1200SK-A	YLL-1400SK	YLL-1400SK-A	YLL-2000SK-A								Product Model
Working Pressure		MPa	0.8	0.8	0.8	0.8								MPa	Working Pressure
Inlet and Outlet Oil Temperature		℃	280/300	277/300	277/300	280/300								℃	Inlet and Outlet Oil Temperature
Flow Rate		m3/h	100	100	100	160								m3/h	Flow Rate
Header Specification		mm	DN150	DN150	DN150	DN150								mm	Header Specification
Boiler Outlet Smoke Temperature		℃	351	330	330	380								℃	Boiler Outlet Smoke Temperature
Water Heater	Area	m2	11	8	11	22								m2	Area	Water Heater
Water Heater	Smoke Exhaust	℃	218	213	205	187								℃	Smoke Exhaust	Water Heater
Air Preheater	Area	m2		15		25								m2	Area	Air Preheater
Air Preheater	Smoke Exhaust	℃		163		140								℃	Smoke Exhaust	Air Preheater
Design Thermal Efficiency		%	75.35%	78.08%	76.05%	78.43%								%	Design Thermal Efficiency
Remarks		/												/	Remarks

Product Name			Biomass thermal oil boiler – horizontal – chain grate – A Biomass thermal oil boiler – horizontal – chain grate – A											Product Name
Product Model			YLW-1200SK-A	YLW-1400SK	YLW-1400SK-A	YLW-2000SK	YLW-2000SK-A	YLW-2400SK-A	YLW-3000SK	YLW-3000SK-A	YLW-3500SK-A	YLW-4100SK	YLW-4100SK-A	Product Model
Working Pressure		MPa	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	MPa	Working Pressure
Inlet and Outlet Oil Temperature		℃	280/300	277/300	277/300	279/300	279/300	278/300	298/320	276/300	272/300	273/300	273/300	℃	Inlet and Outlet Oil Temperature
Flow Rate		m3/h	100	100	100	160	160	180	200	200	200	250	250	m3/h	Flow Rate
Header Specification		mm	DN150	DN150	DN150	DN150	DN150	DN150	DN200	DN200	DN200	DN200	DN200	mm	Header Specification
Boiler Outlet Smoke Temperature		℃	343	330	326	318	318	324	330	307	316	297	297	℃	Boiler Outlet Smoke Temperature
Water Heater	Area	m2	8	8	11	19	19	16	17	17	25	46	46	m2	Area	Water Heater
Water Heater	Smoke Exhaust	℃	218	214	211	217	217	206	212	199	191	165	165	℃	Smoke Exhaust	Water Heater
Air Preheater	Area	m2		15	15	25	25	15	39	39	26	39	39	m2	Area	Air Preheater
Air Preheater	Smoke Exhaust	℃		164	161	159	159	162	159	149	147	126	126	℃	Smoke Exhaust	Air Preheater
Design Thermal Efficiency		%	76.88%	78.08%	77.90%	78.68%	78.68%	78.56%	78.40%	78.82%	80.43%	79.90%	79.90%	%	Design Thermal Efficiency
Remarks		/												/	Remarks

Product Name			Biomass thermal oil boiler – horizontal – chain grate – B Biomass thermal oil boiler – horizontal – chain grate – B											Product Name
Product Model			YLW-4700SK-A	YLW-6000SK-A	YLW-7000SK									Product Model
Working Pressure		MPa	0.8	0.8	0.8									MPa	Working Pressure
Inlet and Outlet Oil Temperature		℃	270/300	268/300	266/300									℃	Inlet and Outlet Oil Temperature
Flow Rate		m3/h	250	300	340									m3/h	Flow Rate
Header Specification		mm	DN200	DN200	DN250									mm	Header Specification
Boiler Outlet Smoke Temperature		℃	317	350	301									℃	Boiler Outlet Smoke Temperature
Water Heater	Area	m2	38		125									m2	Area	Water Heater
Water Heater	Smoke Exhaust	℃	190		149									℃	Smoke Exhaust	Water Heater
Air Preheater	Area	m2	77		104									m2	Area	Air Preheater
Air Preheater	Smoke Exhaust	℃	140		109									℃	Smoke Exhaust	Air Preheater
Design Thermal Efficiency		%	80.80%	78.13%	88.21%									%	Design Thermal Efficiency
Remarks		/												/	Remarks

Product Name			Biomass thermal oil boiler – horizontal – chain grate – C Biomass thermal oil boiler – horizontal – chain grate – C											Product Name
Product Model			YGW-240SK-B	YGW-350SK-B	YGW-500SK-B	YGW-1000SK-B	YGW-1200SK-B	YGW-1200SK-C	YGW-2000SK-C	YGW-2400SK-C	YGW-3000SK-B	YGW-3000SK-C	YGW-3500SK-C	Product Model
Working Pressure		MPa	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	MPa	Working Pressure
Inlet and Outlet Oil Temperature		℃	278/300	281/300	279/300	280/300	280/300	281/300	280/300	278/300	273/300	276/300	272/300	℃	Inlet and Outlet Oil Temperature
Flow Rate		m3/h	18	30	30	80	100	100	160	180	180	200	200	m3/h	Flow Rate
Header Specification		mm	DN65	DN65	DN80	DN100	DN150	DN150	DN150	DN150	DN150	DN200	DN200	mm	Header Specification
Boiler Outlet Smoke Temperature		℃	396	357	340	352	334	360	330	308	313	324	317	℃	Boiler Outlet Smoke Temperature
Water Heater	Area	m2	3	2	3	10	10	13	14	14	34	25	36	m2	Area	Water Heater
Water Heater	Smoke Exhaust	℃	190	255	240	206	195	200	190	200	163	193	164	℃	Smoke Exhaust	Water Heater
Air Preheater	Area	m2							14	15		15		m2	Area	Air Preheater
Air Preheater	Smoke Exhaust	℃							163	158		154		℃	Smoke Exhaust	Air Preheater
Design Thermal Efficiency		%	76.73	73.54	73.28	75.71	88.57	75.09	79.47	79.8	78.41	79.99	86.26	%	Design Thermal Efficiency
Remarks		/	Biomass Burner	Biomass Burner	Biomass Burner	Biomass Burner	Biomass Burner				Biomass Burner			/	Remarks

Note 1: The models in this table are conventional models, please contact us for other specifications and models.
Note 2: All the above values are calculated based on the standard of natural gas low heating value 8400kcal/Nm and diesel low heating value 10250kcal/kg.
Note 3: For the need of continuous improvement, our coMPany reserves the right to modify the specifications and parameters. The above parameters are for reference only, please subject to the final drawings.
Note 4: Conventional configuration power supply conditions: 380V 50Hz three-phase five-wire, if there is any difference, please put forward in advance.
Note 5: Model code description: W-Horizontal L-Vertical
